Short Comparison of Windows Application Programming Interfaces (APIs) and Browser APIs

Copyright © by V. Miszalok, last update: 2009-07-17

Visitors since 01-01-2002

Introduction
A Border Containing a Resizing Text between Two Resizing Buttons
C1: Java Application
C2: Windows Forms Application written in C#
C3: WPF Windows Application written in C#
C4: WPF Windows Application written in XAML and C#
C5: WPF Browser Application written in XAML and C#
C6: Silverlight Browser Application written in XAML and C#
C7: Java Applet
C8: JavaScript Browser Application
C9: Flash Application
C10: JavaFX Application


Introduction

Its hard to write a good user interface even for simple programs. Most interfaces are ugly and buggy and far from being self explaining to the customer. The amount of code for a usable surface normally takes 50% of the overall code. Many Application programming interfaces = APIs provide tools for writing surfaces. This course compares a lot of modern APIs for Windows- and Browser-applications. (not including APIs for MAC OS, Linux and for dedicated Systems as Facebook, Google Maps, iPhone, PayPal, YouTube etc.)

The program that serves as sample for comparison is very simple: Two buttons and a text field that have to adapt themselves to a resizing window or Html page.
Such a fluid layout is called a liquid Graphical User Interface = liquid GUI or fluid GUI is intended to behave reasonably at any big or tiny display- and window-size. In case of browser applications
It comes out that the differences in necessary code volume and resulting elegance are higher than expected.

lines of code look and feel Op.System
+ Browser
Example's drawbacks
GUI+API for EXEs running on the desktop
= dektop applications
Java 64 0 all OS Button size doesn't follow font size.
WindowsForms C#: 53 0 Windows Button size doesn't follow font size.
WPF written in C# C#: 58 ++ Windows
WPF written in XAML and C# C#: 19 + XAML: 16 ++ Windows
Silverlight Out of Browser C#: 20 + XAML: 14 ++ all OS
JavaFX Desktop JavaFX: 45 + all OS
Too slow, needs a launcher program
Adobe AIR ? ++ all OS
GUI+API for programs running in a browser
= web applications
WPF C#: 15 + XAML: 14 ++ Windows
IE + Firefox
Silverlight C#: 20 + XAML: 14 ++ all OS
all browsers

Java Applet 50 0 all OS
all browsers
Strange behavior at start
JavaScript 44 + all OS
all browsers
IE and Firefox need different code.
Font-zoom isn't linear.
JavaFX JavaFX: 45
+ JavaScript 50
+ all OS
all browsers
Too slow
Adobe Flash+Flex ActionScript: 7
+ MXML: 16
+ all OS
all browsers
Doesn't cover complete window width.

Rich Internet Application GUIs = RIAs

Several GUI+APIs appear in the dektop rows and in the web rows of the GUI+API table above (Java, WPF, Adobe) because the sharp gap between classical desktop and classical browser applications nowadays seems to vanish. The new Rich Internet Application GUIs = RIAs contain elements of both worlds. The success of RIAs not only depends on the attractivity of beautiful GUIs but on the acceptance by RIA programmers and how they get along with the technology while producing RIA software.They need a powerful IDE = Integrated Development Environment. And their related RIA designers need powerful WYSIWIG tools. The main competitors on the IDE-market are Sun with Java+JavaFX, Adobe with Flash+Flex+AIR and Microsoft with WPF+Silverlight+Expression Studio.

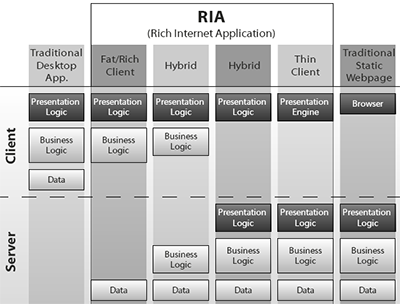

RIAs are usually divided into these categories, depending on how much relative offline and online code they contain:
Fat Client =
Rich Client RIA
  The important things run on the desktop = client.
A browser just provides deployment, update and activation of a desktop program.
Hybrid Client =
Smart Client RIA
  About half the work is done by the desktop = client
and the second half is delivered by the browser or the web server.
Thin Client RIA  The important things are delivered by the web server, the desktop just displays them hiding the web activities from view. Those thin client RIAs do not necessarily run inside a browser. Browserless sample: http://www.apple.com/itunes/download.

The crucial problem of RIAs is the sad fact that search engines do not see them. Google, Microsoft Live Search and Bing and Yahoo just see and crawl static HTML pages and never detect any RIA-code or RIA-wrapped content. The only way to be found is the presence of external links to such a RIA page.


From: www.flomedia.de/diploma/documents/DiplomaThesisFlorianMoritz.pdf.

Browser or desktop ?

1. Informational Pages are happy to be rendered by a browser which provides an URI, back- and forward navigation on a history, refresh and stop loading, bookmarks and a menu with "Save", "Edit", "View", "Print".
2. Web applications are browser-pages for heavy interactive needs. They are based on "Views" rather than pages. Such a "View" is a dynamic GUI presentation of a state of a page and the state transitions are mostly programmed using AJAX. But the browser buttons usually create a lot of problems. The buttons "Back", "Forward", "Refresh", "Stop Loading" cannot be disabled and often result in an interaction disaster. Users have to learn not to touch these browser buttons when using a Web application.
3. Internet-enabled applications do not run in a browser but offer content as browsers do. They handle their own navigation and "Views" and provide a much safer user experience as Web applications do and they offer the freedom of GUI-design as native desktop applications do.
Drawbacks of I-e applications:
3.1. The user must install them plus their runtime libraries which takes time at first use.
3.2. The user must have the right to install something on the computer.
3.3. The user must trust them.
3.4. Deinstallation is necessary after last use.

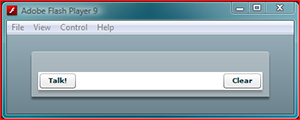

A Border Containing a Resizing Text Between Two Resizing Buttons

Click the Talk!-button and resize the browser window !

Get Microsoft Silverlight

C1: Java Application

HTM: Guidance

PDF: Print Version

C2: Windows Forms Application written in C#

HTM: Guidance

PDF: Print Version

C3: WPF Windows Application written in C#

HTM: Guidance

PDF: Print Version

C4: WPF Windows Application written in XAML and C#

HTM: Guidance

PDF: Print Version

C5: WPF Browser Application written in XAML and C#

HTM: Guidance

PDF: Print Version

C6: Silverlight Browser Application written in XAML and C#

HTM: Guidance

PDF: Print Version

C7: Java Applet

HTM: Guidance

PDF: Print Version

C8: JavaScript Application

HTM: Guidance

PDF: Print Version

C9: Flash Application

HTM: Guidance

PDF: Print Version

C10: JavaFX Application

HTM: Guidance

PDF: Print Version
